Somfy Glydea 60 RTS Drapery Motor 10′ Plug 1246118

Description

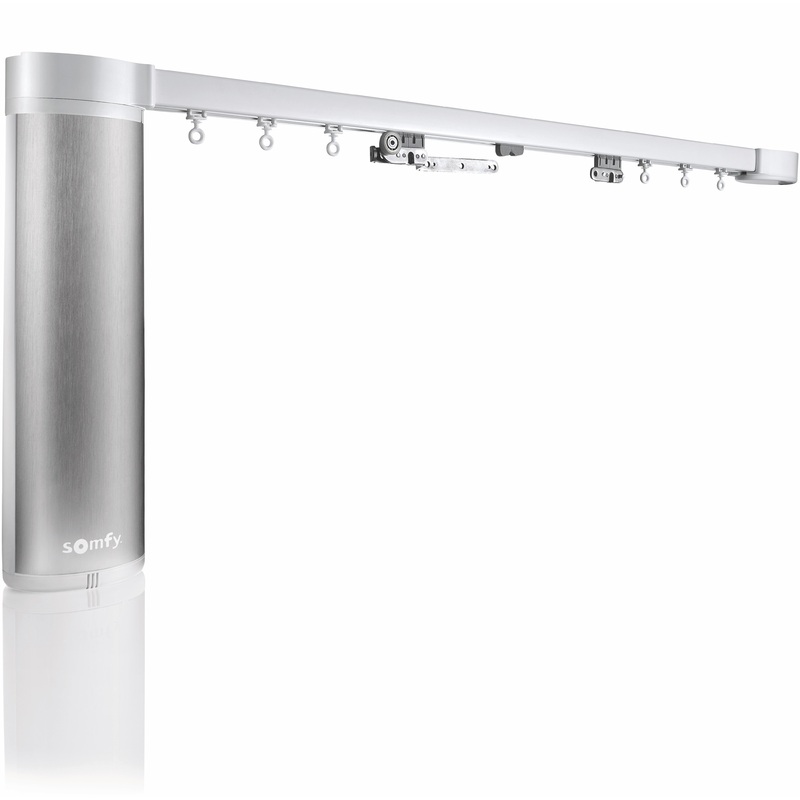

Glydea 60 RTS Drapery Motorized Drapery Track System 1246118

Somfy specialized motors and electronic controls for residential and commercial interior and exterior window coverings.

Somfy Glydea 60 RTS is the solution for your Motorized Drapes,Motorized Drapery Rods, Motorized Drapery Tracks.

• Fully Assembled Track – Made to your exact measurements.

• Gyldea motorized tracks are custom built according to the specified widith . Please note thefinisihed track width is measured pulley end to pulley end

• Available in Pinch Pleat, Ripplefold or Accordia Drapery Style

• Available Center, Left or Right Draw

• Wall or Ceiling Mounted Plugs Directly Into 110V Wall Outlet

• Manual Override Allows Drapery To Be Hand Drawn In the Event Of Power Outage

• RTS Radio Technology Somfy Works With all Somfy RTS controls

• Fabric weight up to 132 lbs – 36 ft Maximum span

• Soft open and close

1246118 Rplaces Somfy Number: 1001617

Technical information

STANDARD

Protection Index IP 30

TECHNOLOGY

Number of channels 12

ELECTRICAL

Consumption during operation 60 W Minimum voltage 100 V Maximum voltage 240 V Rated current 1 A Power supply AC – RGE 8 – 90-240V/50-60HZ

MECHANICAL

Speed 105 rpm Torque 1 Nm Power scale DC MOTOR 37,5W TO 750 W Head type WITHOUT HEAD

CABLE

Cable type VVF Cable length 9.84 ft Cable color WHITE Number of wires of the cable 3 Cable plug ends NEMA PLUG Wire section 0.0012 in

OTHER

Minimum working temperature 32 F Maximum working temperature 140 F Minimum storing temperature -22 F Maximum storing temperature 176 F Thermical time 5 min Shape OVAL CURTAIN Noise level (dB) 38 dB Approval CTUVUS
