Description

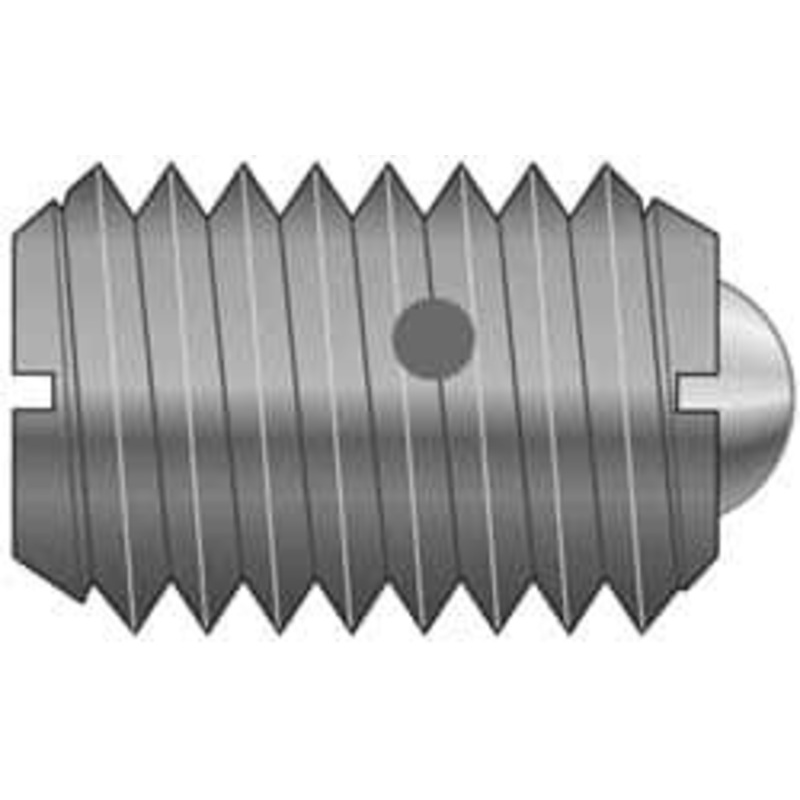

Vlier M10x1.5, 6mm Ball Diam, 19mm Body Length, 2mm Max Ball Reach, Threaded Ball Plunger Steel Body, Steel Ball, 4.5 Lb Initial End Force, 7.87 Lb Final End Force, Locking Element
Manufacturer Part #: BM10AN
S/N: 62121876
UNSPSC: 23153000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size |
M10 x 1.5 |
| Thread Pitch |
1.5mm |
| Body Length |
19.00 |
| Body Length (Decimal Inch) |
0.7480 |
| Body Material |
Steel |
| Ball Material |
Steel |
| Ball Diameter (Decimal Inch) |
0.2360 |
| Ball Diameter (mm) |
6.00 |
| Initial End Force (Lb.) |
4.50 |
| Initial End Force (N) |
20.00 |
| Final End Force (Lb.) |
7.87 |
| Final End Force (N) |
35.00 |
| Locking Element |
Yes |
| Maximum Ball Reach (Decimal Inch) |
0.0790 |
| Maximum Ball Reach (mm) |
2.00 |
| Application |
Controlled End Force, Smallest & Lightest Spring-Loaded Device |
| Color Code |
Purple |
